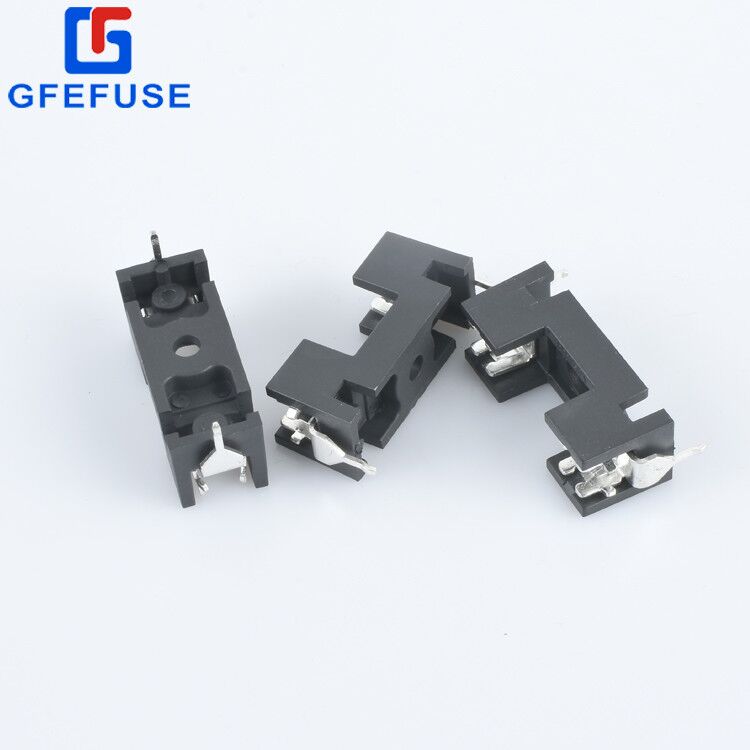

1. Product model: PTF (15S)

2. Applicable fuse: 5.2x20mm

3. Suitable for PCB mounting and soldering

4. Working voltage: 500V (250V) AC

5. Rated current: 16A

6. Working temperature: -40 degrees -125 degrees

7. Flame retardant grade: UL-94V0

8. Soldering temperature: 230-245 degrees (3 seconds)

9. Insulation resistance: ≥ 10 MΩ (500 VDC: 1 min)

10: Withstand voltage: 1500V(dc)

Gongfu Electronics Co., Ltd. specializes in manufacturing and selling solar photovoltaic fuses , new energy vehicle fuses, miniature fuses, forkbolt fuses, automotive fuses, high voltage fuses, chip fuses, ceramic fuses,
